Description
ABY
A or B or both. Queue the Saturnworks ABY.

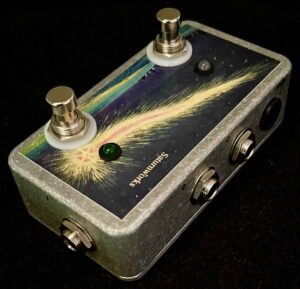

Active ABY
Passive ABY

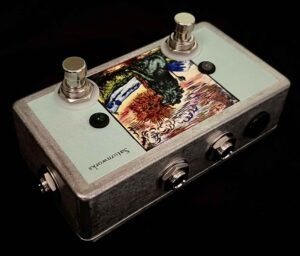

The Saturnworks ABY pedal takes a single input and switches it A/B style to one of two outputs (A or B), or, with a second switch, to both outputs at the same time (Y).
The active version features a built-in dual buffer to prevent signal loss in split (Y) mode. Each output has its own separate buffer. The buffers keep your tone clear and prevent signal and level loss while splitting and over long cable runs.
Since an ABY pedal splits your signal, it is best to use the passive version after a buffer to prevent tone or level loss. The passive ABY (not the active ABY) can also be used in reverse to sum (combine) two signals into one.
Our standard active and passive ABY pedals are built in 4.39” 2.4″ x 1.24” (1590B sized) enclosures.

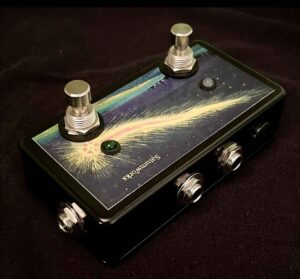

Black active ABY with soft click switches & Switchcraft USA jacks
The ABY black version features upgraded soft click switches, a powder-coated black 4.39” 2.4″ x 1.24” (1590B sized) enclosure, and Switchcraft USA 1/4″ TS jacks.
Compact passive ABY
The compact passive version features a compact 3.5″ x 1.5″ (125B sized) enclosure. The footswitch selects the A or B output. The toggle switch passively splits the signal to both outputs (Y).
Active ABY with phase inverting switches

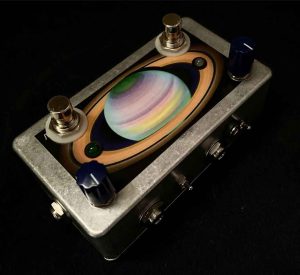

Active ABY with phase inverting switches + volume controls
The signals coming from the active version are in phase with one another. However, inserting devices between the switch and your amp can alter the phase. Also, when splitting your signal to two amps, the amps’ speakers may be out of phase, causing sound issues. Our ABY pedals with phase inverting toggles feature active phase inverting circuits to help with potential out-of-phase issues. The ABY with phase controls use 4.8″ x 2.64″ x 1.58″ (125B sized) enclosures.
Stereo ABY

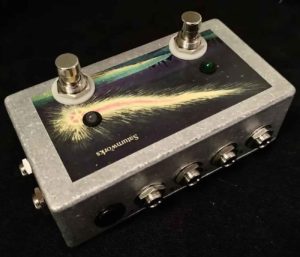

Passive stereo ABY

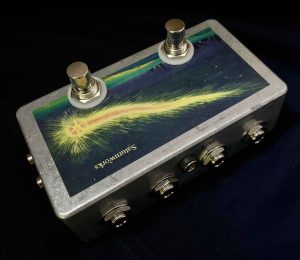

Active stereo ABY
The stereo ABY features pairs of TS jacks — one pair of inputs switching to two pairs of outputs. Both channels are piggybacked on two switches. The active version uses active buffering circuitry to prevent signal loss. As pictured, our active stereo ABY does not include LEDs. Both the active and passive versions are built in 4.8″ x 2.64″ x 1.58″ (125B sized) enclosures.
Bass Mod
The bass mod allows more lower-range frequencies to enter the circuit. The mod doesn’t cut any highs and therefore can also be used with guitars. If you would like to add a bass mod to any active splitter, head on over to our custom upgrades page where you can add this mod at no additional cost.
The Saturnworks ABY pedals feature boutique grade components and features including:
- Durable cast aluminum enclosures.
- High quality switches.
- Heavy duty Neutrik/Rean brand jacks, or Switchcraft for black pedals.
- The active versions run on standard 9v DC center-negative power.
- High quality wire made in the USA.
- The passive versions do not need power to work. The power is only to make the LEDs light up.
- Handcrafted and bench-tested in Washington with US and imported components.
- A 1-year limited warranty against parts and manufacturing defects.
Upgrades and Customizations
Because we know you want your pedal to reflect you, Saturnworks offers a variety of premium upgrades. Customizations and upgrades include powder-coated enclosures, upgraded jacks, upgraded switches (including our incredible soft click latching switches), and custom graphics. Check out our graphics and customizations page for more information.
Please note: The pedals in the images are stock photos and not the actual pedals you will receive. The pedals you receive may vary in their graphics, knob colors, and/or LED colors, where applicable. We have our graphics options here.
